Brinsea Contact Incubation

No compromise laboratory grade egg incubators
for the most demanding applications

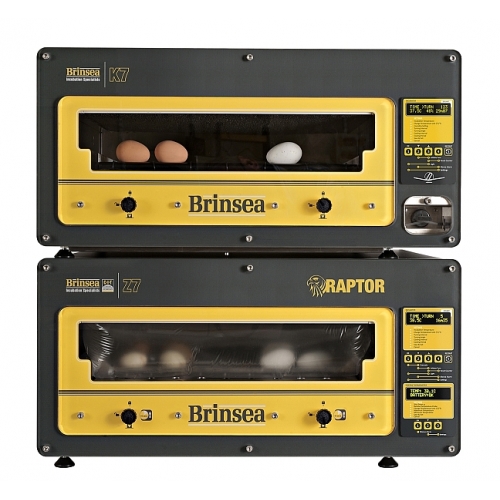

THE NEW CONTAQ Z7 RAPTOR AND K7 COMBINATION

This 3rd generation contact incubator and matching
moving air incubator/hatcher provide optimum conditions for
the full incubation period with improved control and reliability.

CIT Incubation Technology Since initial field trials in 2000 Brinsea’s patented Contact Incubation Technology has established itself as a real step forward in incubation.

Eggs are warmed by contact with an artificial skin, rather than being surrounded by warm air, and the result is much stronger and faster development of the embryo in early stages of incubation. Many breeders of exotic, rare and valuable species across the world have switched to CIT.

The K7 used in conjunction with the Contaq Z7 also allows the breeder to use conventional moving air mode for later stages of incubation and hatching where the benefits of contact incubation are less important and the greater control of humidity can outweigh the advantages of incubation by contact.

A purpose designed hatching tray completes the K7 specification, giving the best possible hatching results for any species.

Products
More Information

Leading raptor breeders have used Brinsea’s contact incubators like the X8 and Z6 for the initial 10 days of incubation with excellent results before moving eggs to conventional forced air incubators. The new Z7 Raptor and K7 combination provide optimum conditions for the full incubation period with improved control and reliability.

'Brinsea’s Contact Incubators have been my choice for breeding falcons for many years and the Z7 represents a significant step forward in this technology'. Martyn Paterson, Senior Aviculturalist and Falcon breeder

Key features of both models

• Precise temperature control with predictive temperature stability system incorporating active temperature overshoot elimination
• High accuracy calibrating thermometer to verify control system accuracy
• Robust programmable rack and pinion turning with optical turn counter and independent alarm for complete confidence that eggs have turned overnight
• Comprehensive set of rollers to suit all egg types
• Fully stainless-steel construction for longevity and ease of cleaning
• Stackable, front loading space efficient design
• 3 year warranty

Contaq Z7 unique features

• Patented Contact Incubation Technology
• Contact thermometer to independently show actual egg surface temperature
• High and low temperature alarms
• Power failure alarm with battery backup and status display

Contact thermometer
to show actual egg surface temperature

Advanced roller
system

Air Filter and Contact 'Skin'

K7 unique features

• Precise automatic control of humidity with display in %RH
• Purpose designed hatching tray

Humidity pump accessible
for easy maintenance

Hatching Tray
with cover

Specifications:

External dimensions: 33cm x 66cm x 59cm (13" x 26" x 231/4" ) – H x W x D
Weight: Z7 39Kg (86Lbs) K7 42Kg (92Lbs)
Power consumption: 110W max and 60W nominal operating
Input voltage: 115v AC

Examples of typical maximum egg capacities:
Z7: Quail 88, Partridge 63, Pheasant 48, Hen/Falcon/Saker 42, Duck/Turkey 20,
Emu/Rhea 8, Ostrich 4
K7: Quail 110, Partridge 81, Pheasant 64, Hen/Falcon/Saker 49, Duck/Turkey 20, Emu/Rhea 8, Ostrich 4

The best solution to every stage of incubation - No compromise
